EVM + Midnight Token Metadata

Template: templates/evm-midnight-v2

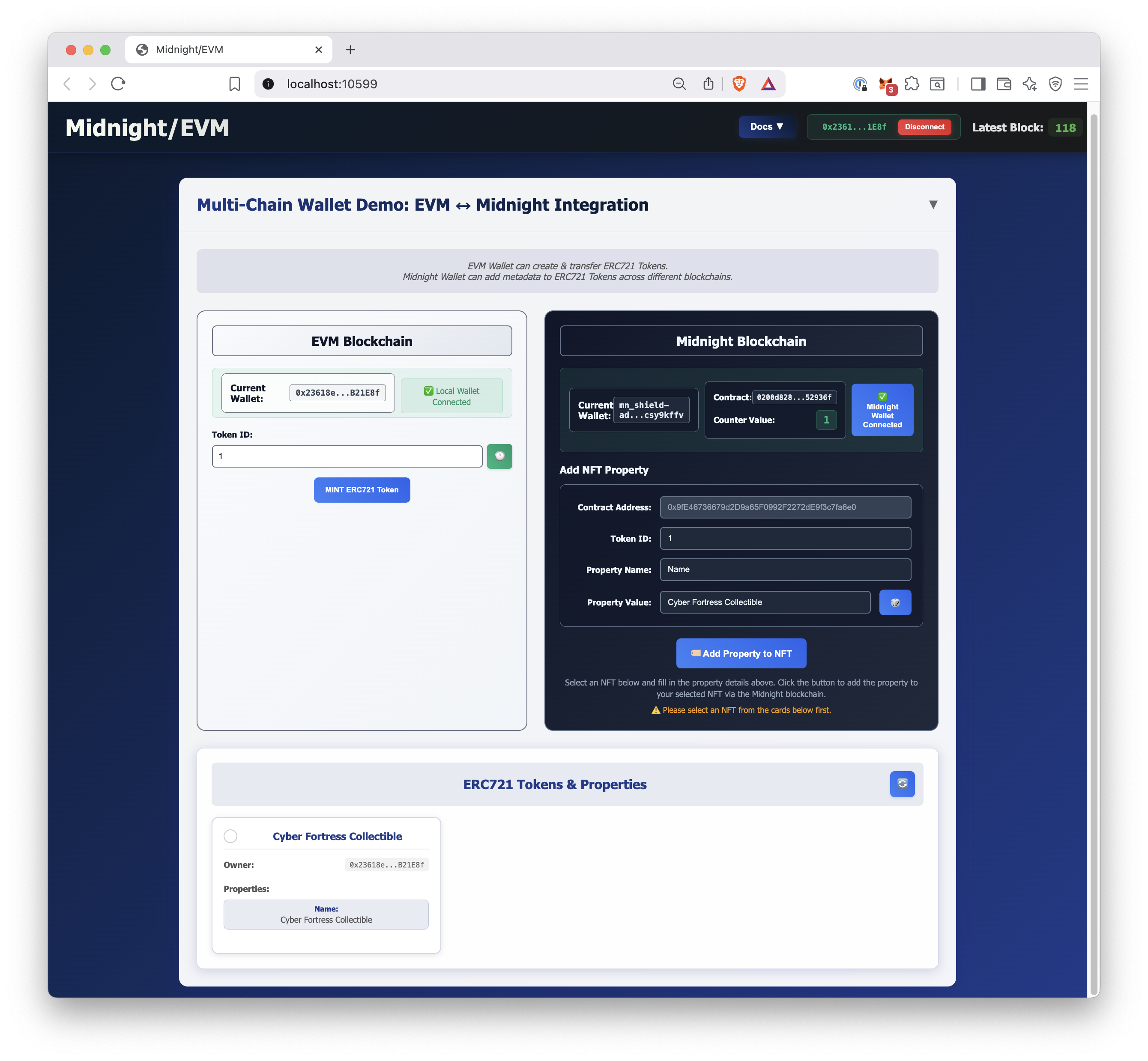

The EVM + Midnight dApp

A token's ownership is a good fit for a public EVM chain: everyone needs to agree on it. A token's properties often are not — stats, bids, traits and attributes are frequently better computed privately and revealed only once. This template splits an NFT along exactly that line. The ERC-721 contract on the EVM chain owns transfers; a Compact circuit on Midnight takes private inputs, and discloses only the resulting key/value property to Midnight's public ledger. Effectstream syncs both chains and merges them into one queryable table.

The template ships the whole loop: a local Hardhat chain, a full local Midnight stack (node, indexer, proof server), a sync node with two parallel sync protocols, a Postgres schema, a REST endpoint, a batcher with EVM and Midnight adapters, a React frontend that mints a token and calls the circuit from the browser, and an end-to-end test suite. It is the reference to read when you want to build a dApp whose state lives on more than one chain.

What this template shows​

The join happens in the rollup, not on a bridge. Neither chain knows the other exists. There is no message-passing contract, no relayer, no light client. The two chains are correlated by a shared key — (contract_address, token_id) — that the user supplies to both sides, and the state machine is what actually merges them. That is the pattern worth copying: when you only need a consistent view of two chains rather than atomic execution across them, an Effectstream rollup replaces a bridge.

Compact's disclose is the interface between ZK and the sync node. Effectstream reads Midnight's public ledger, so a Midnight contract has to decide what a sync node is allowed to see. In packages/contracts-midnight/contract-round-value/src/counter.compact the increment circuit accepts four private arguments and writes each through disclose(...) into a public ledger field. The private inputs stay off-chain; the resulting property becomes readable state. Designing the circuit is designing the sync surface.

Two parallel sync protocols under one NTP main protocol. packages/node/config.dev.ts declares an NTP main protocol (mainNtp) plus two parallel ones — mainEvmRPC and parallelMidnight. The NTP clock supplies the canonical block ordering, and each chain is ingested independently against it. Neither chain has to be the "primary" one, and the EVM and Midnight sides can run at completely different block times (500 ms polling vs 1000 ms locally, 1000 ms vs 6000 ms on mainnet).

Events arrive out of order, and the state machine is written for it. A user can add a Midnight property before the ERC-721 Transfer has been indexed, so the midnightContractState transition in packages/node/state-machine.ts inserts a placeholder row with owner: "" when the token is unknown — required because evm_midnight_properties has a foreign key onto evm_midnight. Both transitions use ON CONFLICT … DO UPDATE, so replays and re-orders converge on the same state.

Fixed-width byte fields need decoding on the way out. Compact ledger fields are Bytes<64> / Bytes<32>, so the frontend right-pads ASCII into fixed-width arrays (toEncodedString in packages/frontend/client/src/increment.ts) and the state machine's decodeField reverses it, tolerating both the hex-string and byte-index-object shapes the primitive can produce.

Effectstream features used​

FeatureWhereUsed for
@effectstream/sm state machine (Stm)packages/node/state-machine.tsTwo transitions — transfer-assets and midnightContractState — writing into one schema
Builtin grammars (@effectstream/sm/grammar)packages/node/grammar.tsbuiltinGrammars.evmErc721 and builtinGrammars.midnightGeneric parse each primitive's payload
PrimitiveTypeEVMERC721packages/node/config.dev.tsIngests Transfer events from the deployed Erc721Dev contract
PrimitiveTypeMidnightGenericpackages/node/config.dev.tsReads the Compact contract's public ledger via the generated CounterContract.ledger reader
NTP main + parallel sync protocols (@effectstream/config)packages/node/config.dev.ts, packages/node/config.mainnet.tsConfigBuilder wires mainNtp, mainEvmRPC and parallelMidnight
@effectstream/runtime start()packages/node/main.dev.tsBoots the node with state transitions, migrations, grammar and API router
Custom Fastify API routerpackages/node/api.tsGET /api/erc721 serving the merged EVM + Midnight view
@effectstream/db + pgtypedpackages/database/Migration table and typed queries generated from sql/sm_example.sql
@effectstream/batcher-sdk — EffectstreamL2DefaultAdapterpackages/batcher/effectstream-l2.tsSubmits batched inputs to MyPaimaL2Contract on the EVM chain
@effectstream/batcher-sdk — MidnightAdapterpackages/batcher/midnight-balancing.tsInvokes the Compact circuit from the batcher's own funded wallet
@effectstream/orchestrator launch helpersstart.dev.tslaunchPglite, launchEvm, launchMidnight build the local dependency graph
@effectstream/evm-hardhatpackages/contracts-evm/Compiles with Forge + Hardhat and generates the TypeScript bindings in build/mod.ts
@effectstream/midnight-contractspackages/contracts-midnight/deploy.ts, packages/node/config.dev.tsdeployMidnightContract, readMidnightContract, midnightNetworkConfig
@effectstream/walletspackages/frontend/client/src/contexts/WalletContext.tsxBrowser wallet connection and login
@effectstream/event-clientpackages/frontend/client/src/hooks/BlockWatcher.tsSubscribes to builtin node events for the live block columns

Quick start​

Prerequisites beyond Bun:

  • Foundry — forge compiles the Solidity artifacts the binding generator reads. The orchestrator checks for it on PATH and refuses to start without it.
    curl -L https://foundry.paradigm.xyz | bash && foundryup
  • Compact — the Midnight circuit compiler, pinned to 0.31.0. Also checked on PATH before the Midnight processes launch.
    curl --proto '=https' --tlsv1.2 -LsSf https://github.com/midnightntwrk/compact/releases/latest/download/compact-installer.sh | sh
    compact update 0.31.0

Then:

git clone https://github.com/effectstream/effectstream.git
cd effectstream/templates/evm-midnight-v2

# Inside the monorepo, use link.sh — it installs npm deps and then symlinks
# every @effectstream/* package to its local source. Standalone copies of the
# template use `bun install` instead.
./link.sh

# Compiles the Compact circuit, compiles + deploys the Solidity contracts,
# deploys the Midnight contract, then starts PGLite, the sync node, the
# batcher and the frontend.
bun run dev

bun run dev is NODE_ENV=development bunx orchestrator start, which reads start.dev.ts. Open the dApp at http://localhost:10599.

ServiceURL
Frontend (dApp)http://localhost:10599
Sync node APIhttp://localhost:9999
Sync node OpenAPI docshttp://localhost:9999/documentation
Batcherhttp://localhost:3334
Orchestrator APIhttp://localhost:4747
Hardhat EVM (main)http://localhost:8545
Hardhat EVM (parallel)http://localhost:8546
Midnight node RPChttp://localhost:9944
Midnight indexer (GraphQL)http://localhost:8088/api/v3/graphql
Midnight proof serverhttp://localhost:6300
PGLite (Postgres)postgres://postgres:postgres@localhost:5432/postgres

Individual build steps are also available on their own:

bun run build:midnight   # compact compile +0.31.0 src/counter.compact src/managed
bun run build:evm        # Forge + Hardhat compile, deploy, generate TS bindings
bun run build:pgtypes    # regenerate pgtyped query types from sql/*.sql

Docker​

The Dockerfile installs Bun, Node, Foundry and the Compact compiler, pre-warms the solc cache, and starts the same orchestrator config.

# On macOS Apple Silicon
export DOCKER_DEFAULT_PLATFORM=linux/amd64

docker build -f ./Dockerfile . -t evm-midnight
docker run -p 10599:10599 -p 9999:9999 -p 8545:8545 -p 8546:8546 \
           -p 8088:8088 -p 6300:6300 -p 9944:9944 -p 4747:4747 evm-midnight

# Run the test suite inside the container
docker run evm-midnight bun run test

Project structure​

evm-midnight-v2/
├── start.dev.ts                              # Orchestrator process graph for the local stack
├── link.sh                                   # Symlink @effectstream/* to monorepo sources
├── Dockerfile                                # Full stack in one container
└── packages/
    ├── node/                                 # @evm-midnight/node — sync node
    │   ├── main.dev.ts                       #   Dev entry point (Hardhat + local Midnight)
    │   ├── main.mainnet.ts                   #   Mainnet entry point (Arbitrum One + Midnight mainnet)
    │   ├── config.dev.ts                     #   Networks, sync protocols and primitives (dev)
    │   ├── config.mainnet.ts                 #   Same, env-driven, for mainnet
    │   ├── grammar.ts                        #   Prefix -> builtin grammar mapping
    │   ├── state-machine.ts                  #   The two state transition functions
    │   └── api.ts                            #   GET /api/erc721
    ├── database/                             # @evm-midnight/database
    │   ├── migrations/000-init.sql           #   evm_midnight + evm_midnight_properties
    │   ├── migration-order.ts                #   migrationTable consumed by the runtime
    │   └── sql/sm_example.sql                #   pgtyped query definitions
    ├── contracts-evm/                        # @evm-midnight/contracts-evm
    │   ├── src/contracts/ERC721Dev.sol       #   Mintable ERC-721 the node syncs
    │   ├── src/contracts/MyPaimaL2.sol       #   EffectstreamL2Contract the batcher writes to
    │   ├── ignition/modules/                 #   Hardhat Ignition deployment modules
    │   └── deploy.ts                         #   Deploys to the main and parallel Hardhat chains
    ├── contracts-midnight/                   # @evm-midnight/contracts-midnight
    │   ├── deploy.ts                         #   deployMidnightContract("contract-round-value")
    │   ├── package.json                      #   node / indexer / proof-server launch scripts
    │   └── contract-round-value/             # @evm-midnight/midnight-contract
    │       ├── src/counter.compact           #   The Compact circuit
    │       └── src/witnesses.ts              #   Private state type + (empty) witnesses
    ├── batcher/                              # @evm-midnight/batcher
    │   ├── batcher.dev.ts                    #   Local batcher (both adapters)
    │   ├── batcher.mainnet.ts                #   Mainnet batcher
    │   ├── effectstream-l2.ts                #   EVM L2 contract adapter
    │   └── midnight-balancing.ts             #   Midnight circuit adapter
    ├── frontend/                             # @evm-midnight/frontend
    │   ├── client/                           #   React + Vite dApp
    │   ├── server/main.ts                    #   Fastify static server on :10599
    │   └── .env.dev / .env.mainnet           #   VITE_* endpoints per environment
    └── tests/                                # @evm-midnight/tests — end-to-end suite

How it works​

Contracts​

The EVM side is deliberately boring — a mintable OpenZeppelin ERC-721 whose Transfer events are the only thing the node cares about:

// packages/contracts-evm/src/contracts/ERC721Dev.sol
contract Erc721Dev is ERC721 {
    constructor() ERC721("Mock ERC721", "MERC") {}

    function mint(address _to, uint256 _tokenId) external {
        _mint(_to, _tokenId);
    }
}

The Midnight side is where the interesting decision lives. The increment circuit takes four private inputs and publishes each of them into a ledger field:

// packages/contracts-midnight/contract-round-value/src/counter.compact
pragma language_version >= 0.17;

import CompactStandardLibrary;

// public state
export ledger round: Counter;
export ledger contract_address: Bytes<64>;
export ledger token_id: Bytes<64>;
export ledger property_name: Bytes<32>;
export ledger value: Bytes<32>;

// transition function changing public state
export circuit increment(
  contract_address_: Bytes<64>,
  token_id_: Bytes<64>,
  property_name_: Bytes<32>,
  value_: Bytes<32>,
): [] {
  round.increment(1);
  contract_address = disclose(contract_address_);
  token_id = disclose(token_id_);
  property_name = disclose(property_name_);
  value = disclose(value_);
}

The circuit is named increment because it started life as the Midnight counter example; round is still incremented on every call, which is what makes each invocation a distinct ledger state the sync node can observe. packages/contracts-midnight/contract-round-value/src/witnesses.ts declares an empty witness set — this template's privacy comes from the arguments, not from private witness state.

Sync configuration and primitives​

packages/node/config.dev.ts builds the whole ingestion pipeline. Two primitives, one per chain, each pointing at a state machine prefix:

.addPrimitive(
  (syncProtocols) => syncProtocols.mainEvmRPC,
  (network, deployments, syncProtocol) => ({
    name: "Arbitrum_ERC721",
    type: PrimitiveTypeEVMERC721,
    startBlockHeight: 0,
    contractAddress: contractAddressesEvmMain()
      .chain31337["Erc721DevModule#Erc721Dev"],
    stateMachinePrefix: "transfer-assets",
  }),
)
.addPrimitive(
  (syncProtocols) => syncProtocols.parallelMidnight,
  (network, deployments, syncProtocol) => ({
    name: "MidnightContractState",
    type: PrimitiveTypeMidnightGeneric,
    startBlockHeight: 1,
    contractAddress: readMidnightContract(
      "contract-round-value",
      { networkId: midnightNetworkConfig.id },
    ).contractAddress,
    stateMachinePrefix: "midnightContractState",
    contract: { ledger: CounterContract.ledger },
    networkId: midnightNetworkConfig.id,
  }),
)

Note contract: { ledger: CounterContract.ledger } — the primitive is handed the ledger reader generated by compact compile, which is how it turns a raw Midnight contract state into a typed payload. Both contract addresses are read from build output rather than hardcoded: the EVM address from the generated Ignition bindings, the Midnight address from the deployment file written by deploy.ts.

The dev config also recovers the NTP start time from effectstream.sync_protocol_pagination on boot, so restarting the node does not restart the rollup clock.

Grammar​

Both prefixes use builtin grammars, so the template writes no parser of its own:

// packages/node/grammar.ts
export const grammar = {
  "transfer-assets": builtinGrammars.evmErc721,
  "midnightContractState": builtinGrammars.midnightGeneric,
} as const satisfies GrammarDefinition;

State machine​

transfer-assets records ownership. The contract address comes from the generated bindings, so the key written here matches the one the frontend sends to Midnight:

// packages/node/state-machine.ts
stm.addStateTransition(
  "transfer-assets",
  function* (data) {
    const { to, tokenId }: any = data.parsedInput;
    const contract_address =
      contractAddressesEvmMain().chain31337["Erc721DevModule#Erc721Dev"];
    yield* World.resolve(insertEvmMidnight, {
      contract_address,
      token_id: tokenId,
      owner: to,
      block_height: data.blockHeight,
    });
  },
);

midnightContractState decodes the disclosed ledger fields, backfills the token row if the EVM event has not landed yet, then upserts the property:

const contract_address = decodeField(payload.contract_address);
const token_id = decodeField(payload.token_id);
const property_name = decodeField(payload.property_name);
const value = decodeField(payload.value);

if (!token_id) {
  console.log("[STM:midnight] empty token_id, skipping");
  return;
}

const [evmMidnight] = yield* World.resolve(getEvmMidnightByTokenId, {
  contract_address,
  token_id,
});

if (!evmMidnight) {
  yield* World.resolve(insertEvmMidnight, {
    contract_address, token_id, owner: "", block_height: data.blockHeight,
  });
}

yield* World.resolve(insertEvmMidnightProperty, {
  contract_address, token_id, property_name, value, block_height: data.blockHeight,
});

Database​

Two tables, joined on the composite key, with the properties table constrained to reference a known token (packages/database/migrations/000-init.sql):

CREATE TABLE evm_midnight (
  id SERIAL PRIMARY KEY,
  token_id TEXT NOT NULL,
  contract_address TEXT NOT NULL,
  owner TEXT,
  block_height INTEGER NOT NULL
);
CREATE UNIQUE INDEX evm_midnight_contract_address_index ON evm_midnight(contract_address, token_id);

CREATE TABLE evm_midnight_properties (
  id SERIAL PRIMARY KEY,
  property_name TEXT NOT NULL,
  value TEXT NOT NULL,
  token_id TEXT NOT NULL,
  contract_address TEXT NOT NULL,
  block_height INTEGER NOT NULL,
  FOREIGN KEY (contract_address, token_id) REFERENCES evm_midnight(contract_address, token_id)
);

Both writes are idempotent upserts (packages/database/sql/sm_example.sql):

/* @name insertEvmMidnightProperty */
INSERT INTO evm_midnight_properties
    (contract_address, token_id, property_name, value, block_height)
VALUES
    (:contract_address!, :token_id!, :property_name!, :value!, :block_height!)
ON CONFLICT (contract_address, token_id, property_name)
DO UPDATE SET
    value = EXCLUDED.value,
    block_height = EXCLUDED.block_height
;

bun run build:pgtypes regenerates the typed wrappers in sql/sm_example.queries.ts, and migration-order.ts exports the migrationTable the runtime applies at startup.

API​

packages/node/api.ts adds one endpoint to the node's Fastify server. It guards against being called before migrations have run, then serves the joined view:

server.get("/api/erc721", async (_request, reply) => {
  const [tableExists] = await runPreparedQuery(
    evmMidnightTableExists.run(undefined, dbConn), "evmMidnightTableExists");
  if (!tableExists?.exists) {
    reply.send([]);
    return;
  }
  const result = await runPreparedQuery(
    getEvmMidnight.run(undefined, dbConn), "/api/erc721");
  reply.send(result);
});

Each row carries the token, its owner, one property, and the block heights of both — for example:

[{"token_id":"111","owner":"","block_height":1395,"property_name":"Name","value":"Starlight Bridge Token","property_block_height":1395}]

Frontend flow​

packages/frontend/client/src/components/WalletDemo.tsx drives the demo end to end. Minting calls the ERC-721 directly on the local Hardhat chain with viem; adding a property goes through packages/frontend/client/src/increment.ts, which builds a Midnight wallet in the browser (WalletFacade.init), joins the deployed contract with findDeployedContract, and invokes the circuit with fixed-width ASCII arguments:

const toEncodedString = (str: string, length = 32) =>
  Uint8Array.from(str.padEnd(length, " ").split("").map((c) => c.charCodeAt(0)));

const finalizedTxData = await counterContract.callTx.increment(
  toEncodedString(contractAddress, 64),
  toEncodedString(tokenId, 64),
  toEncodedString(propertyName, 32),
  toEncodedString(propertyValue, 32),
);

The UI then polls GET /api/erc721 and shows the merged result. Because the MQTT broker is skipped under Bun, .env.dev sets VITE_IS_BUN=true and the frontend polls the node's /block-heights endpoint for the live block columns instead of subscribing over WebSocket.

Configuration​

The template ships two environments.

DevMainnet
EVM chainHardhat (31337)Arbitrum One (42161)
MidnightLocal, undeployed network idMidnight mainnet
Node entrypackages/node/main.dev.tspackages/node/main.mainnet.ts
Node configpackages/node/config.dev.tspackages/node/config.mainnet.ts
Batcher entrypackages/batcher/batcher.dev.tspackages/batcher/batcher.mainnet.ts
Frontend envpackages/frontend/.env.devpackages/frontend/.env.mainnet
Start commandbun run devbun run start:mainnet

Dev​

Most values are set by start.dev.ts and need no attention.

VariableDefaultDescription
NODE_ENVset by bun run devMust be development for the orchestrator to pick start.dev.ts
EVM_PRIVATE_KEYHardhat account #1 keySigns the batcher's EVM transactions (packages/batcher/batcher.dev.ts)
BATCHER_PORT3334Batcher HTTP port
PGLITEtrue (set for the sync process)Set PGLITE=false to use an external Postgres on DB_PORT instead of the embedded PGLite
EFFECTSTREAM_API_PORT9999Sync node HTTP API port
MIDNIGHT_STORAGE_PASSWORDYourPasswordMy1!Midnight private-state store password; needs 3 of 4 character classes

Mainnet​

packages/node/config.mainnet.ts throws on startup if any required variable is missing, and asserts that midnightNetworkConfig.id is mainnet.

VariableRequiredDescription
EVM_RPC_URLYesArbitrum One RPC endpoint
EVM_START_BLOCKYesEVM block height to start syncing from
MIDNIGHT_START_BLOCKYesMidnight block height to start syncing from
NTP_START_TIMENoNTP epoch in ms; otherwise recovered from the database, then Date.now()
EVM_PRIVATE_KEYYesSigns the batcher's Arbitrum transactions

Pointing at another Midnight network​

Midnight endpoints come from @effectstream/midnight-contracts/midnight-env, which is driven entirely by environment variables. Setting MIDNIGHT_NETWORK_ID to anything other than undeployed (testnet, preview, mainnet, …) switches the defaults to https://indexer.<id>.midnight.network and https://rpc.<id>.midnight.network; the proof server stays local unless overridden. Individual URLs can be overridden with MIDNIGHT_INDEXER_HTTP, MIDNIGHT_INDEXER_WS, MIDNIGHT_NODE_HTTP and MIDNIGHT_PROOF_SERVER_URL, and the wallet with MIDNIGHT_WALLET_SEED or MIDNIGHT_WALLET_MNEMONIC (the local genesis seed is only used on undeployed).

The frontend reads its endpoints from VITE_* variables in .env.dev / .env.mainnet:

bun run --filter @evm-midnight/frontend build:dev       # uses .env.dev
bun run --filter @evm-midnight/frontend build:mainnet   # uses .env.mainnet

Testing​

bun run test

packages/tests/run-tests.ts starts the orchestrator against packages/tests/start.test.ts, waits on the orchestrator's /health and /processes endpoints, runs the phases below, then shuts the stack down. It exits non-zero if any assertion fails or if any infrastructure wait times out.

PhaseFilesCovers
A — Infrastructureinfra/chain-ready.test.ts, infra/deploy.test.ts, infra/midnight-ready.test.ts, infra/midnight-deploy.test.tsHardhat is up, contracts deployed, Midnight node/indexer/proof server ready, Compact contract deployed
B — STM / DB / APIstm/erc721.test.ts, stm/api.test.ts, stm/api-erc721.test.ts, stm/erc721-properties.test.tsState transitions write the expected rows; /api/erc721 returns them
C — Cross-chainstm/cross-chain.test.tsMints and transfers on Hardhat with viem, then asserts the database and API reflect it
D — Midnight propertystm/midnight-property.test.tsCalls the increment circuit and asserts the disclosed property lands in the database (non-fatal)
E — Frontendfrontend/build-smoke.test.ts, frontend/render.test.ts, frontend/wallet-connect.test.tsFrontend builds, renders under Playwright, and connects a wallet

Where to go next​

  • Midnight integration — how Effectstream reads Midnight's public ledger, and what that means for circuit design
  • Primitives — the chain-aware listeners behind PrimitiveTypeEVMERC721 and PrimitiveTypeMidnightGeneric
  • State machine — writing and testing state transition functions
  • Batcher overview — adapters, batching criteria and confirmation levels
  • Sibling templates: minimal for the smallest single-chain node, night-bitcoin-v2 for a Midnight + Bitcoin intent swap, and evm-cardano for another two-chain rollup
