Web Wallets

  • Location: /e2e/e2e-wallets/
  • Highlights: A comprehensive example frontend to use the @effectstream/wallets library, demonstrating multi-chain wallet connections and different transaction submission methods.

The Wallets Demo is a developer tool and an interactive example that showcases how to integrate various blockchain wallets into a Effectstream dApp. It provides a clear, hands-on demonstration of connecting to different chains, signing messages, and submitting transactions, serving as a practical guide for developers.

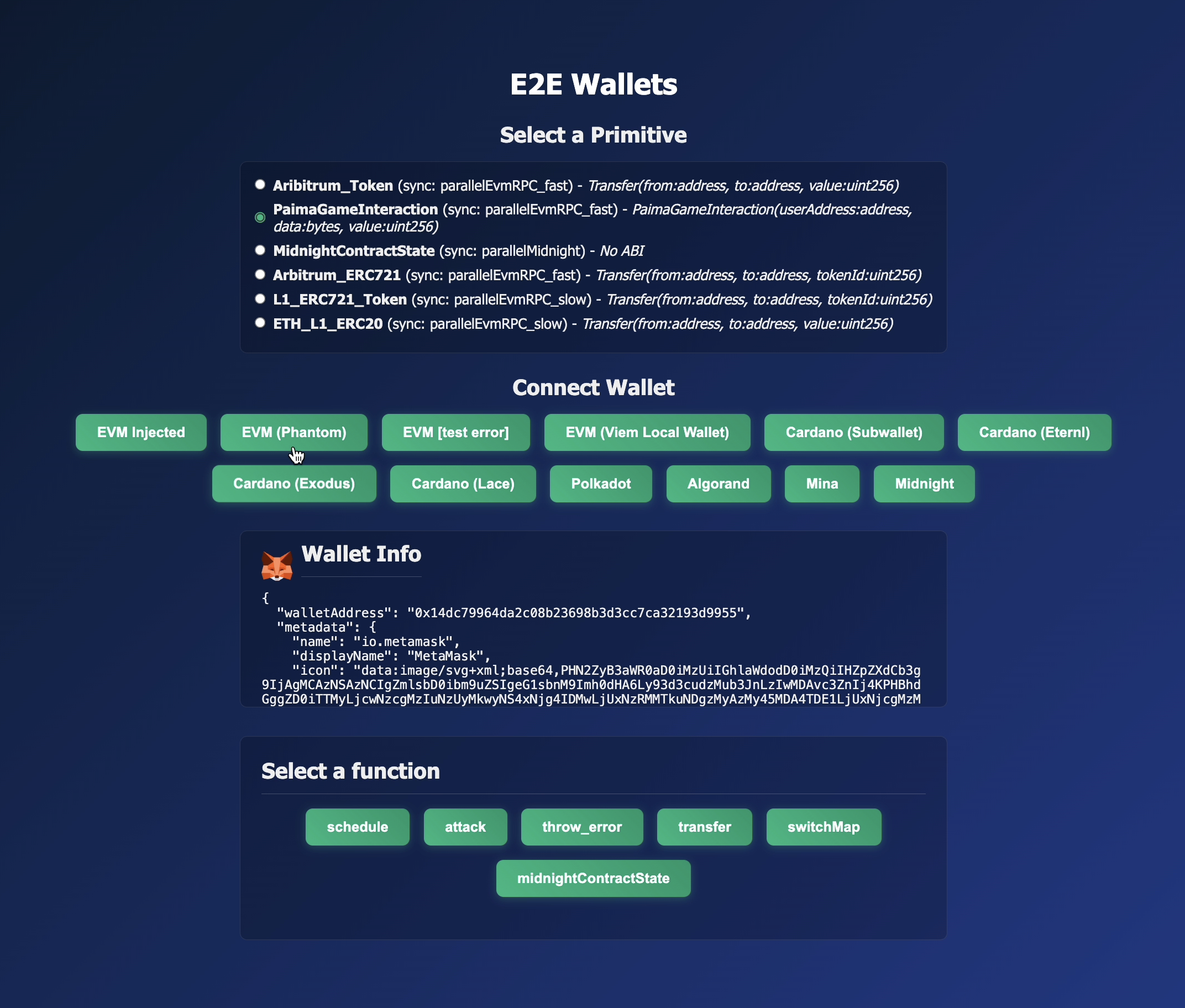

Wallets Demo

Video Demo:

Core Concept: A Unified Wallet Experience​

The primary goal of this demo is to illustrate the power and flexibility of the @effectstream/wallets library. It answers the question: "How can my dApp seamlessly handle wallets from different ecosystems like EVM, Cardano, Polkadot, and more?"

The application demonstrates three key user flows:

  1. Connecting Wallets: Shows how to initiate connections with a wide variety of wallets, from browser extensions like MetaMask to local, programmatic wallets for testing.
  2. Signing Messages: A standard way to verify ownership of an address without submitting an on-chain transaction.
  3. Submitting Transactions: Illustrates the different ways a user can send data to your Effectstream application:
    • Direct On-Chain: A standard transaction sent to a specific Paima L2 contract.
    • Via the Batcher: A gasless, user-friendly alternative where transactions are submitted through a Paima service.

This demo is an essential resource for any developer looking to build a multi-chain dApp on Effectstream.

How to Run​

(TODO move to own template)

deno install --allow-scripts && ./patch.sh
deno task -f @e2e/evm-contracts build
deno task -f @e2e/evm-contracts deploy:standalone
deno task -f @e2e/midnight-contracts midnight-contract:compile
# If running on linux set env DISABLE_YACI=true
deno task -f @e2e/node dev

In another terminal, run the demo:

deno task -f @e2e/wallets-ui dev

The Components in Action​

The demo is a standalone React + Vite application. Its interface is divided into three main sections:

  1. Select a Primitive: A "primitive" is a pre-configured listener for on-chain events. In this demo, you select which on-chain contract or event you want to interact with. The list is dynamically loaded from the engine's configuration.
  2. Connect Wallet: Based on the selected primitive, a list of compatible wallets is displayed. For example, selecting an EVM-based primitive will show EVM wallets like MetaMask and Phantom. This section allows you to connect and disconnect from your chosen wallet.
  3. Perform an Action: Once connected, you can interact with the application. For primitives linked to a Paima L2 contract, a form is dynamically generated based on the contract's grammar, allowing you to send valid inputs.

Code Deep Dive: App.tsx​

The entire logic is contained within /e2e/e2e-wallets/client/src/App.tsx. Let's break down the key parts.

1. Configuration​

The application first sets up the necessary configuration to communicate with Effectstream and its related services.

  • paimaEngineConfig: This object tells the wallet library where to find key services, such as the Batcher and the Paima L2 contract. This normally is declared once per application globally.

    import { hardhat } from "viem/chains";
    import { PaimaEngineConfig } from "@effectstream/wallets";

    const paimaEngineConfig = new PaimaEngineConfig(
      "my-app-name",
      "parallelEvmRPC_fast", // paima l2 sync protocol name
      "0xe7f1725E7734CE288F8367e1Bb143E90bb3F0512", // paima l2 contract address
      hardhat, // paima l2 chain
      undefined, // use default paima l2 abi
      "http://localhost:3334", // batcher url
    );

2. Wallet Connection​

The core of the wallet connection logic revolves around the walletLogin function from @effectstream/wallets. The demo pre-defines a list of connection options, each with a specific WalletMode.

// Example for an injected EVM wallet (MetaMask)
{
  name: "EVM Injected",
  mode: WalletMode.EvmInjected,
  login: () =>
    handleLogin(() =>
      walletLogin({
        mode: WalletMode.EvmInjected,
        preference: { name: "io.metamask" },
      })
    ),
  types: ["evm"],
},

// Example for a programmatic local wallet for testing
{
  name: "EVM (Viem Local Wallet)",
  mode: WalletMode.EvmEthers,
  login: () =>
    handleLogin(() =>
      walletLogin({
        mode: WalletMode.EvmEthers,
        connection: { /* ... custom ethers.js signer ... */ },
        preferBatchedMode: false,
      })
    ),
  types: ["evm"],
},

The handleLogin wrapper function simply processes the result of the walletLogin call, updating the React state with the connected wallet's information or displaying an error.

3. Submitting a Concise Input to a Effectstream L2 Contract​

When a user connects and selects a primitive corresponding to a Effectstream L2 contract, the application needs to show a form for the available functions. It does this by reading a grammar object, which defines the inputs for each state transition function.

This is a specific example on how to obtain the fields for a concise input for this template, but it's a general approach for any Effectstream L2 contract.

// A simplified view of the form rendering logic
const args = grammar[selectedFunction as keyof typeof grammar];

return (
  <div>
    <h3>{selectedFunction}</h3>
    {args.map(([name, schema]) => (
      <div key={name} className="form-field">
        <label>{name}:</label>
        {renderInput(name, schema, name)}
      </div>
    ))}
    {/* ... submit buttons ... */}
  </div>
);

The handleSubmit function takes the user's input and uses the @effectstream/wallets library to send it to the blockchain. It showcases the three main interaction patterns you will normally use

  • Signing a message
  • Sending a direct transaction to the Effectstream L2 contract
  • Sending a transaction via the Batcher
  • Automatic Selection of the appropriate submission method based on the preferBatchedMode flag
const handleSubmit = async () => {
  const conciseData = [selectedFunction, ...Object.values(formValues)];
  // Build message as ["action-name", "input-A", 100, ...]
  switch (selectedAction) {
    // Sign message
    case "signMessage": {
      // Verifies ownership without a transaction
      const signedMessage = await signMessage(wallet, JSON.stringify(formValues));
      setActionResult(JSON.stringify(signedMessage, null, 2));
      break;
    }
    // Automatically selects the appropriate submission method based on the paimaEngineConfig
    case "automatic": {
      const result = await sendTransaction(
        wallet,
        conciseData,
        paimaEngineConfig,
      );
      const str = JSON.stringify(result, null, 2);
      setActionResult(`Transaction sent. Result: ${str}`);
      break;
    }
    // Send Self Sequenced Transaction
    case "sendSelfSequencedTransaction": {
      // Submits a direct transaction to the Effectstream L2 contract
      const result = await sendSelfSequencedTransaction(
        wallet,
        conciseData,
        paimaEngineConfig,
      );
      const str = JSON.stringify(result, null, 2);
      setActionResult(`Transaction sent. Result: ${str}`);
      break;
    }
    // Submits the transaction via the gasless Batcher service
    case "sendBatcherTransaction": {
      const result = await sendBatcherTransaction(
        wallet,
        conciseData,
        paimaEngineConfig,
      );
      const str = JSON.stringify(result, null, 2);
      setActionResult(`Batcher transaction sent. Result: ${str}`);
      break;
    }
  }
};

This demonstrates how a single wallet object, regardless of its underlying chain or type, can be used with a unified API (signMessage, sendTransaction, sendSelfSequencedTransaction, sendBatcherTransaction) to interact with the Effectstream ecosystem.
