Dice Game (Turn-Based Multiplayer)

Path: /templates/dice
Highlights: A blackjack-style dice game showcasing NFT-based player accounts, lobby systems, turn-based gameplay, and deterministic random number generation using EffectStream's L2.

The dice template demonstrates how to build a competitive two-player dice game with lobby management, turn-based rounds, and NFT-based player identification. It's an excellent example for games requiring account systems, matchmaking, sequential turn order, and deterministic randomness, all processed through an EffectStream L2 contract on an EVM chain.

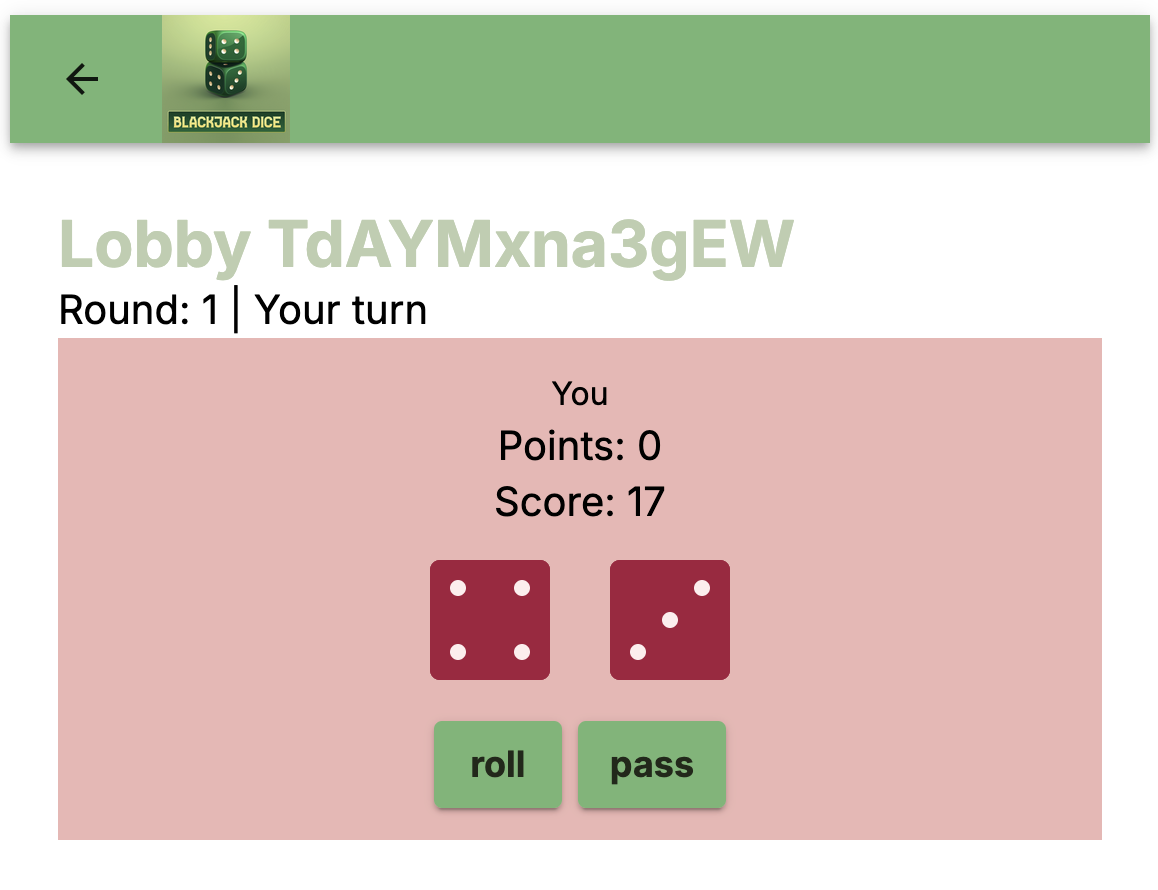

Dice Game Screenshot

Core Concept: Blackjack Dice with NFT Accounts

The goal of this template is to demonstrate a competitive multiplayer dice game where players use NFT accounts to create or join lobbies, compete to reach a target score of 21 without going over, and track their win/loss records across multiple rounds.

NFT Account System: Each player mints an NFT that serves as their in-game identity, tracked in the database for persistent stats.
Lobby System: Players create lobbies with configurable round counts, round lengths, time per player, and visibility settings.
Turn-Based Gameplay: Players alternate turns, rolling two dice and deciding whether to roll again or pass.
Blackjack Scoring: The goal is to reach exactly 21 (2 points) or get closer to 21 than your opponent (1 point) without going over.
Deterministic Randomness: Dice rolls use Prando (deterministic PRNG) seeded with block data, ensuring all nodes reach identical results.
Player Statistics: Track wins, losses, and ties for each NFT account across all completed matches.

This template serves as a foundation for:

Turn-based strategy games
Dice-based board games
Card games with sequential turns
Any game requiring persistent player accounts and statistics

Quick Start

# Install dependencies
deno install --allow-scripts
./patch.sh

# Build EVM contracts
deno task build:evm

# Start the EffectStream Node (automatically builds and serves frontend)
deno task dev

The game will be available at:

Frontend: http://localhost:8080
API: http://localhost:9999
Explorer: http://localhost:10590
Blockchain: http://localhost:8545

Using Test Accounts

For development, import Hardhat's test accounts into MetaMask:

Open MetaMask → Click account icon → Import Account

Select Private Key and paste one of these:

# Account #0 (10,000 ETH)
0xac0974bec39a17e36ba4a6b4d238ff944bacb478cbed5efcae784d7bf4f2ff80

# Account #1 (10,000 ETH) - for testing multiplayer
0x59c6995e998f97a5a0044966f0945389dc9e86dae88c7a8412f4603b6b78690d

Make sure MetaMask is connected to Localhost 8545 (Chain ID: 31337)

⚠️ Never use these private keys on a real network - they're publicly known and only for local development.

Docker Setup

You can run the entire stack in a single Docker container:

Building the Docker Image

# For macOS
DOCKER_DEFAULT_PLATFORM=linux/amd64 docker build -t dice -f Dockerfile .

# For Linux
docker build -t dice -f Dockerfile .

Running the Container

# For macOS
DOCKER_DEFAULT_PLATFORM=linux/amd64 docker run -p 8080:8080 -p 8545:8545 -p 9999:9999 dice

# For Linux
docker run -p 8080:8080 -p 8545:8545 -p 9999:9999 dice

The container exposes:

Port 8080: Frontend
Port 8545: Local EVM node (Hardhat)
Port 9999: EffectStream backend API

The Components in Action

When you run deno task dev, the Process Orchestrator sets up:

Hardhat EVM Node: Local blockchain on port 8545
Development Services: PGlite database, log collector, TUI, and Explorer
EffectStream Node: Backend service on port 9999
Frontend: React + MUI game interface on port 8080

Game Rules

How to Play

Mint an NFT Account: Each player mints an NFT that represents their in-game identity
Create or Join a Lobby: The first player creates a lobby, the second player joins
Take Turns Rolling Dice: Players alternate turns, rolling two six-sided dice
Make Strategic Decisions: After each roll, choose to:
- Roll Again: Add another dice roll to your total (initial rolls continue until reaching 16+)
- Pass: Lock in your current score and end your turn
Avoid Going Over 21: If your total exceeds 21, you score 0 points for that round
Scoring:
- Exactly 21: 2 points
- Closer to 21 without going over: 1 point
- Tie or over 21: 0 points
Win the Match: The player with the most points after all rounds wins

Initial Roll Mechanic

When a player's turn begins, they automatically roll dice until their score reaches 16 or higher. This ensures every turn starts with a meaningful decision point.

On-Chain Logic

The template uses a EffectStream L2 Contract deployed on the local EVM chain at 0x5FbDB2315678afecb367f032d93F642f64180aa3. Players submit formatted input strings, and EffectStream processes them to update game state.

// The EffectStreamL2Contract acts as an input mailbox
contract EffectStreamL2 {
    event EffectStreamGameInteraction(address indexed user, bytes input, uint256 indexed nonce);

    function submitInput(bytes calldata input) external payable {
        emit EffectStreamGameInteraction(msg.sender, input, nonce);
    }
}

Additionally, the template deploys an ERC721 NFT contract for player accounts:

// Simple NFT for player accounts
contract DiceNFT is ERC721 {
    uint256 private _tokenIdCounter;

    function mint() external {
        uint256 tokenId = _tokenIdCounter++;
        _mint(msg.sender, tokenId);
    }
}

EffectStream monitors the EffectStreamGameInteraction event for player actions and the ERC721 Transfer event for NFT mints.

The State Machine (`state-machine.ts`)

The State Machine implements all game logic using generator functions with yield* for structured effects.

Grammar Definition

Input grammar is defined using TypeBox schemas in packages/shared/data-types/src/grammar.ts:

export const grammar = {
  // NFT mint event - uses built-in ERC721 grammar for Transfer events
  nftMint: builtinGrammars.evmErc721,

  // Create a new lobby: c|creatorNftId|numOfRounds|roundLength|playTimePerPlayer|isHidden?|isPractice?
  createdLobby: [
    ["creatorNftId", NftID],
    ["numOfRounds", Type.Number({ minimum: 1, maximum: 1000 })],
    ["roundLength", Type.Number({ minimum: 1, maximum: 10000 })],
    ["playTimePerPlayer", Type.Number({ minimum: 1, maximum: 10000 })],
    ["isHidden", Type.Optional(Type.Boolean())],
    ["isPractice", Type.Optional(Type.Boolean())],
  ],

  // Join an existing lobby: j|nftId|lobbyID
  joinedLobby: [
    ["nftId", NftID],
    ["lobbyID", LobbyID],
  ],

  // Close a lobby: cs|lobbyID
  closedLobby: [
    ["lobbyID", LobbyID],
  ],

  // Submit moves: s|nftId|lobbyID|matchWithinLobby|roundWithinMatch|rollAgain
  submittedMoves: [
    ["nftId", NftID],
    ["lobbyID", LobbyID],
    ["matchWithinLobby", Type.Number({ minimum: 0 })],
    ["roundWithinMatch", Type.Number({ minimum: 0 })],
    ["rollAgain", Type.Boolean()],
  ],
} as const satisfies GrammarDefinition;

State Transitions

`nftMint`

Tracks NFT ownership when players mint their in-game accounts.

stm.addStateTransition("nftMint", function* (data) {
  const { blockTimestamp, parsedInput } = data;

  yield* World.resolve(upsertNftOwnership, {
    nft_id: Number(parsedInput.tokenId),
    wallet_address: parsedInput.to,
    created_at: new Date(Number(blockTimestamp) * 1000),
  });
});

`createdLobby`

Creates a new game lobby with the creator automatically added as the first player.

stm.addStateTransition("createdLobby", function* (data) {
  const { blockHeight, blockTimestamp, parsedInput, randomGenerator } = data;

  // Generate unique lobby ID
  const lobbyId = randomGenerator.nextString(12);

  // Create the lobby
  yield* World.resolve(insertLobby, {
    lobby_id: lobbyId,
    max_players: 2,
    num_of_rounds: parsedInput.numOfRounds,
    round_length: parsedInput.roundLength,
    play_time_per_player: parsedInput.playTimePerPlayer,
    current_match: null,
    current_round: null,
    current_turn: null,
    current_proper_round: null,
    created_at: new Date(Number(blockTimestamp) * 1000),
    creation_block_height: blockHeight,
    hidden: parsedInput.isHidden ?? false,
    practice: parsedInput.isPractice ?? false,
    lobby_creator: parsedInput.creatorNftId,
    lobby_state: "open",
  });

  // Add creator as first player
  yield* World.resolve(insertLobbyPlayer, {
    lobby_id: lobbyId,
    nft_id: parsedInput.creatorNftId,
    points: 0,
    score: 0,
    turn: null,
  });

  // Initialize global stats for creator
  yield* World.resolve(upsertGlobalUserState, {
    nft_id: parsedInput.creatorNftId,
  });
});

`joinedLobby`

Allows a second player to join an open lobby, starting the match by assigning turn order and creating the first match and round.

stm.addStateTransition("joinedLobby", function* (data) {
  const { blockHeight, parsedInput, randomGenerator } = data;

  const lobby = yield* World.resolve(getLobbyById, { lobby_id: parsedInput.lobbyID });
  if (!lobby || lobby.length === 0 || lobby[0].lobby_state !== "open") {
    return;
  }

  const lobbyData = lobby[0];

  // Prevent creator from joining their own lobby
  if (lobbyData.lobby_creator === parsedInput.nftId) {
    return;
  }

  const existingPlayers = yield* World.resolve(getLobbyPlayers, { lobby_id: parsedInput.lobbyID });

  // Only allow join if not already in lobby
  if (existingPlayers.some(p => p.nft_id === parsedInput.nftId)) {
    return;
  }

  // Add second player
  yield* World.resolve(insertLobbyPlayer, {
    lobby_id: parsedInput.lobbyID,
    nft_id: parsedInput.nftId,
    points: 0,
    score: 0,
    turn: null,
  });

  // Initialize global stats for joiner
  yield* World.resolve(upsertGlobalUserState, {
    nft_id: parsedInput.nftId,
  });

  // Get all players and randomly assign turns
  const allPlayers = yield* World.resolve(getLobbyPlayers, { lobby_id: parsedInput.lobbyID });

  const firstPlayerIndex = randomGenerator.next() < 0.5 ? 0 : 1;
  allPlayers[firstPlayerIndex].turn = 0;
  allPlayers[1 - firstPlayerIndex].turn = 1;

  // Update player turns
  for (const player of allPlayers) {
    yield* World.resolve(updateLobbyPlayerTurn, {
      lobby_id: parsedInput.lobbyID,
      nft_id: player.nft_id,
      turn: player.turn,
    });
  }

  // Update lobby to active state
  yield* World.resolve(updateLobbyState, {
    lobby_id: parsedInput.lobbyID,
    lobby_state: "active",
    current_match: 0,
    current_round: 0,
    current_turn: 0,
    current_proper_round: 1,
  });

  // Create first match
  yield* World.resolve(insertLobbyMatch, {
    lobby_id: parsedInput.lobbyID,
    match_within_lobby: 0,
    starting_block_height: blockHeight,
  });

  // Create first round
  yield* World.resolve(insertMatchRound, {
    lobby_id: parsedInput.lobbyID,
    match_within_lobby: 0,
    round_within_match: 0,
    starting_block_height: blockHeight,
    execution_block_height: null,
  });
});

`submittedMoves`

Handles player actions during their turn. Players can choose to roll again or pass.

stm.addStateTransition("submittedMoves", function* (data) {
  const { blockHeight, parsedInput, randomGenerator } = data;

  const lobby = yield* World.resolve(getLobbyById, { lobby_id: parsedInput.lobbyID });
  if (!lobby || lobby.length === 0) {
    return;
  }

  const lobbyData = lobby[0];

  // Validate it's the player's turn
  const players = yield* World.resolve(getLobbyPlayers, { lobby_id: parsedInput.lobbyID });
  const currentPlayer = players.find(p => p.turn === lobbyData.current_turn);

  if (!currentPlayer || currentPlayer.nft_id !== parsedInput.nftId) {
    return;
  }

  // Process the move
  let newScore = currentPlayer.score;

  if (parsedInput.rollAgain) {
    // Roll two dice
    const die1 = Math.floor(randomGenerator.next() * 6) + 1;
    const die2 = Math.floor(randomGenerator.next() * 6) + 1;
    newScore += die1 + die2;

    // Update player score
    yield* World.resolve(updateLobbyPlayerScore, {
      lobby_id: parsedInput.lobbyID,
      nft_id: parsedInput.nftId,
      score: newScore,
    });

    // Check if player went over 21 or chose to auto-pass at 16+
    const shouldAutoPass = newScore >= 16 && newScore <= 21;
    if (newScore > 21 || shouldAutoPass) {
      // End turn automatically
      yield* switchToNextTurn(parsedInput.lobbyID, lobbyData, players, blockHeight);
    }
  } else {
    // Player chose to pass
    yield* switchToNextTurn(parsedInput.lobbyID, lobbyData, players, blockHeight);
  }
});

`closedLobby`

Allows the lobby creator to close an open lobby before it starts.

stm.addStateTransition("closedLobby", function* (data) {
  const { parsedInput } = data;

  const lobby = yield* World.resolve(getLobbyById, { lobby_id: parsedInput.lobbyID });
  if (!lobby || lobby.length === 0 || lobby[0].lobby_state !== "open") {
    return;
  }

  yield* World.resolve(updateLobbyState, {
    lobby_id: parsedInput.lobbyID,
    lobby_state: "closed",
    current_match: null,
    current_round: null,
    current_turn: null,
    current_proper_round: null,
  });
});

Database Schema

The database has six main tables defined in packages/client/database/src/migrations/database.sql:

`lobbies`

Stores lobby metadata and current game state.

CREATE TYPE lobby_status AS ENUM ('open', 'active', 'finished', 'closed');
CREATE TABLE lobbies (
  lobby_id TEXT PRIMARY KEY,
  max_players INTEGER NOT NULL,
  num_of_rounds INTEGER NOT NULL,
  round_length INTEGER NOT NULL,
  play_time_per_player INTEGER NOT NULL,
  current_match INTEGER,
  current_round INTEGER,
  current_turn INTEGER,
  current_proper_round INTEGER,
  created_at TIMESTAMP NOT NULL,
  creation_block_height INTEGER NOT NULL,
  hidden BOOLEAN NOT NULL DEFAULT false,
  practice BOOLEAN NOT NULL DEFAULT false,
  lobby_creator INTEGER NOT NULL,
  lobby_state lobby_status NOT NULL
);

`lobby_match`

Tracks individual matches within a lobby.

CREATE TABLE lobby_match(
  id SERIAL PRIMARY KEY,
  lobby_id TEXT NOT NULL references lobbies(lobby_id),
  match_within_lobby INTEGER NOT NULL,
  starting_block_height INTEGER NOT NULL
);

`match_round`

Tracks individual rounds within each match.

CREATE TABLE match_round(
  id SERIAL PRIMARY KEY,
  lobby_id TEXT NOT NULL references lobbies(lobby_id),
  match_within_lobby INTEGER NOT NULL,
  round_within_match INTEGER NOT NULL,
  starting_block_height INTEGER NOT NULL,
  execution_block_Height INTEGER
);

`round_move`

Records each dice roll and decision made during a round.

CREATE TABLE round_move (
  id SERIAL PRIMARY KEY,
  lobby_id TEXT NOT NULL references lobbies(lobby_id),
  match_within_lobby INTEGER NOT NULL,
  round_within_match INTEGER NOT NULL,
  move_within_round INTEGER NOT NULL,
  nft_id INTEGER NOT NULL,
  roll_again BOOLEAN NOT NULL
);

`lobby_player`

Tracks players in each lobby and their current scores.

CREATE TABLE lobby_player (
  id SERIAL PRIMARY KEY,
  lobby_id TEXT NOT NULL references lobbies(lobby_id),
  nft_id INTEGER NOT NULL,
  points INTEGER NOT NULL DEFAULT 0,
  score INTEGER NOT NULL DEFAULT 0,
  turn INTEGER
);

`global_user_state`

Tracks win/loss statistics for each NFT account.

CREATE TABLE global_user_state (
  nft_id INTEGER NOT NULL PRIMARY KEY,
  wins INTEGER NOT NULL DEFAULT 0,
  losses INTEGER NOT NULL DEFAULT 0,
  ties INTEGER NOT NULL DEFAULT 0
);

`nft_ownership`

Maps NFT IDs to wallet addresses (added in migration 001-add-nft-ownership.sql).

CREATE TABLE IF NOT EXISTS nft_ownership (
  nft_id INTEGER NOT NULL PRIMARY KEY,
  wallet_address TEXT NOT NULL,
  created_at TIMESTAMP NOT NULL DEFAULT NOW()
);

CREATE INDEX IF NOT EXISTS idx_nft_ownership_wallet ON nft_ownership(wallet_address);

Type-Safe Queries

The template uses pgtyped to generate TypeScript types from SQL queries. To regenerate types after modifying SQL files:

cd packages/client/database
deno task pgtyped:update

Important: Always run deno task pgtyped:update after modifying SQL queries, as the type definitions need to be regenerated.

API Endpoints

The backend server runs on port 9999 and provides REST endpoints defined in packages/client/node/src/api.ts.

GET `/lobby/:lobbyId`

Fetches details for a specific lobby including player data.

Example Request:

curl "http://localhost:9999/lobby/abc123xyz456"

Example Response:

{
  "lobby_id": "abc123xyz456",
  "max_players": 2,
  "num_of_rounds": 5,
  "round_length": 60,
  "play_time_per_player": 30,
  "current_match": 0,
  "current_round": 0,
  "current_turn": 1,
  "current_proper_round": 1,
  "created_at": "2025-01-15T10:30:00.000Z",
  "creation_block_height": 42,
  "hidden": false,
  "practice": false,
  "lobby_creator": 1,
  "lobby_state": "active",
  "players": [
    {
      "nftId": 1,
      "turn": 0,
      "points": 2,
      "score": 19
    },
    {
      "nftId": 2,
      "turn": 1,
      "points": 1,
      "score": 21
    }
  ]
}

GET `/open_lobbies`

Lists all open lobbies available to join.

Query Parameters:

Parameter	Type	Default	Description
`page`	number	0	Page number (0-based)
`count`	number	10	Items per page

Example Request:

curl "http://localhost:9999/open_lobbies?page=0&count=10"

GET `/lobbies/active`

Lists all currently active matches.

Query Parameters:

Parameter	Type	Default	Description
`page`	number	0	Page number (0-based)
`count`	number	10	Items per page

GET `/user_lobbies`

Fetches lobbies for a specific wallet address.

Query Parameters:

Parameter	Type	Required	Description
`wallet`	string	Yes	Wallet address
`page`	number	No	Page number (0-based)
`count`	number	No	Items per page

Example Request:

curl "http://localhost:9999/user_lobbies?wallet=0xf39fd6e51aad88f6f4ce6ab8827279cffb92266&page=0&count=10"

GET `/user_lobbies_by_nft`

Fetches lobbies where a specific NFT is a player.

Query Parameters:

Parameter	Type	Required	Description
`nft_id`	number	Yes	NFT ID
`page`	number	No	Page number (0-based)
`count`	number	No	Items per page

GET `/nfts`

Retrieves all NFTs owned by a wallet address.

Query Parameters:

Parameter	Type	Required	Description
`wallet`	string	Yes	Wallet address

Example Response:

{
  "nfts": [1, 3, 7]
}

GET `/user_stats`

Fetches player statistics for a wallet.

Query Parameters:

Parameter	Type	Required	Description
`wallet`	string	Yes	Wallet address

Example Response:

{
  "nft_id": 1,
  "wins": 5,
  "losses": 2,
  "ties": 1
}

Frontend Architecture

The frontend uses React with Material-UI (MUI) for the game interface and lobby management, with wallet integration via @paimaexample/wallets.

Key Components

OpenLobbies.tsx: Displays available lobbies to join
MyGames.tsx: Shows the player's game history
DiceGame.tsx: Main game interface with dice rolling
Dice.tsx: React wrapper for react-dice-complete library

Wallet Middleware

The middleware layer (paimaMiddleware.src.js) bridges React to the EffectStream wallet API:

import { EffectStreamConfig, sendTransaction, walletLogin, WalletMode } from "@paimaexample/wallets";
import { hardhat } from "viem/chains";

const effectstreamConfig = new EffectStreamConfig(
  "dice",
  "mainEvmRPC",
  "0x5FbDB2315678afecb367f032d93F642f64180aa3",
  hardhat,
  undefined,
  undefined,
  false,
);

const endpoints = {
  async userWalletLogin({ mode, preferBatchedMode }) {
    const result = await walletLogin({
      mode,
      chain: effectstreamConfig.effectstreamL2Chain,
    });
    if (!result.success) {
      return { success: false };
    }
    wallet = result.result;
    return {
      success: true,
      result: {
        walletAddress: wallet.walletAddress.address,
        ...wallet,
      },
    };
  },

  async createLobby(creatorNftId, numOfRounds, roundLength, timePerPlayer, isHidden = false, isPractice = false) {
    const params = ["createdLobby", creatorNftId, numOfRounds, roundLength, timePerPlayer, isHidden, isPractice];
    const result = await sendTransaction(wallet, params, effectstreamConfig);

    if (!result.success) {
      return { success: false, errorMessage: "Failed to create lobby" };
    }

    // Poll for the lobby with retries
    for (let attempt = 0; attempt < 15; attempt++) {
      await new Promise(resolve => setTimeout(resolve, 1000));

      const response = await fetch(
        `http://localhost:9999/user_lobbies?wallet=${walletAddr}&page=0&count=1`
      );
      if (response.ok) {
        const lobbies = await response.json();
        if (lobbies && lobbies.length > 0) {
          return {
            success: true,
            lobbyID: lobbies[0].lobby_id,
            lobbyStatus: lobbies[0].lobby_state,
          };
        }
      }
    }

    return {
      success: false,
      errorMessage: "Lobby created but could not retrieve lobby ID after 15 attempts",
    };
  },

  async joinLobby(nftId, lobbyId) {
    return await sendTransaction(
      wallet,
      ["joinedLobby", nftId, lobbyId],
      effectstreamConfig
    );
  },

  async submitMoves(nftId, lobbyId, matchWithinLobby, roundWithinMatch, rollAgain) {
    return await sendTransaction(
      wallet,
      ["submittedMoves", nftId, lobbyId, matchWithinLobby, roundWithinMatch, rollAgain],
      effectstreamConfig
    );
  },
};

export default endpoints;
export { WalletMode };

Building the Frontend

The frontend uses esbuild for bundling. When you run deno task dev, the frontend is automatically built and served. To manually rebuild:

cd packages/frontend
node esbuild.js  # Generates paimaMiddleware.js

Architecture Highlights

Deterministic Random Number Generation

The dice game uses Prando for deterministic random number generation, ensuring all nodes compute identical results:

// In state transitions, randomGenerator is seeded with block data
const die1 = Math.floor(randomGenerator.next() * 6) + 1;
const die2 = Math.floor(randomGenerator.next() * 6) + 1;

This guarantees that:

All nodes agree on dice roll results
Game outcomes are provably fair
State transitions are reproducible

NFT-Based Player Accounts

Unlike traditional wallet-based systems, this template uses NFTs as player identities:

// When an NFT is minted, it's tracked in the database
stm.addStateTransition("nftMint", function* (data) {
  yield* World.resolve(upsertNftOwnership, {
    nft_id: Number(parsedInput.tokenId),
    wallet_address: parsedInput.to,
    created_at: new Date(Number(blockTimestamp) * 1000),
  });
});

Benefits:

Players can have multiple game accounts (multiple NFTs)
Accounts are transferable (trade/sell your game stats)
Persistent identity across wallet changes

Polling for Lobby Creation

The frontend uses a polling mechanism to wait for lobby indexing before redirecting:

// Poll for the lobby with retries (15 attempts, 1 second apart)
for (let attempt = 0; attempt < 15; attempt++) {
  await new Promise(resolve => setTimeout(resolve, 1000));

  const response = await fetch(
    `http://localhost:9999/user_lobbies?wallet=${walletAddr}&page=0&count=1`
  );
  if (response.ok) {
    const lobbies = await response.json();
    if (lobbies && lobbies.length > 0) {
      return {
        success: true,
        lobbyID: lobbies[0].lobby_id,
        lobbyStatus: lobbies[0].lobby_state,
      };
    }
  }
}

This ensures the lobby is indexed before the frontend tries to display it.

Generator Function Pattern

State transitions use generator functions with yield* for structured effects:

// State machine uses generators
stm.addStateTransition("createdLobby", function* (data) {
  // 1. Extract data from the input
  const { blockHeight, parsedInput, randomGenerator } = data;

  // 2. Apply SQL updates
  yield* World.resolve(insertLobby, {
    lobby_id: randomGenerator.nextString(12),
    // ... other parameters
  });
});

This pattern ensures:

Deterministic execution: EffectStream manages all side effects
Testability: State transitions are pure functions
Type safety: pgtyped generates types for all queries

Separation of Concerns

Grammar (packages/shared/data-types): TypeBox validation
Game Logic (packages/shared/game-logic): Pure, deterministic game rules
State Machine (packages/client/node/src/state-machine): Generator-based orchestration
Database (packages/client/database): Type-safe queries with pgtyped
API (packages/client/node/src/api.ts): REST endpoints
Frontend (packages/frontend): React + MUI game interface

Use Cases and Extensions

This template can be extended for various game types:

Yahtzee or Similar Dice Games

Replace scoring rules with category-based scoring (straights, full house, etc.)
Add dice holding mechanics (keep some dice, reroll others)
Implement scorecard tracking

Craps or Casino Games

Extend dice rolling to support betting mechanics
Add house edge calculations
Implement multiple players per table

Board Games with Dice

Add grid-based movement using dice rolls
Implement positional game logic
Create item collection or resource gathering

RPG Stat Rolling

Use for character creation systems
Add stat allocation mechanics
Implement reroll tokens or modifiers

Troubleshooting

Port Conflicts

lsof -i :8545  # Check EVM node port
lsof -i :9999  # Check API port
lsof -i :8080  # Check frontend port

Frontend Bundle Outdated

cd packages/frontend
node esbuild.js  # Regenerate bundle

Database Query Types Out of Sync

After modifying SQL files:

cd packages/client/database
deno task pgtyped:update

Lobby Not Creating

Check that:

MetaMask is connected to Localhost 8545
You have test ETH in your account
The EffectStream node is running (deno task dev)
Check browser console for errors
Verify you've minted an NFT account first

NFT Account Not Found

Make sure to:

Mint an NFT using the "Mint NFT" button in the UI
Wait for the transaction to be confirmed
Refresh the page to see your NFT ID

MetaMask Issues

If the UI fails to load:

Try restarting MetaMask
Clear browser cache and hard refresh (Cmd/Ctrl + Shift + R)
Verify you're connected to the correct network (Localhost 8545, Chain ID 31337)

Game Not Starting

If you create a lobby but it doesn't start:

Wait for a second player to join
The game shows "Waiting for opponent..." until both players are present
Check the "Open Lobbies" page to verify the lobby is visible

Core Concept: Blackjack Dice with NFT Accounts​

Quick Start​

Using Test Accounts​

Docker Setup​

Building the Docker Image​

Running the Container​

The Components in Action​

Game Rules​

How to Play​

Initial Roll Mechanic​

On-Chain Logic​

The State Machine (state-machine.ts)​

Grammar Definition​

State Transitions​

nftMint​

createdLobby​

joinedLobby​

submittedMoves​

closedLobby​

Database Schema​

lobbies​

lobby_match​

match_round​

round_move​

lobby_player​

global_user_state​

nft_ownership​

Type-Safe Queries​

API Endpoints​

GET /lobby/:lobbyId​

GET /open_lobbies​

GET /lobbies/active​

GET /user_lobbies​

GET /user_lobbies_by_nft​

GET /nfts​

GET /user_stats​

Frontend Architecture​

Key Components​

Wallet Middleware​

Building the Frontend​

Architecture Highlights​

Deterministic Random Number Generation​

NFT-Based Player Accounts​

Polling for Lobby Creation​

Generator Function Pattern​

Separation of Concerns​

Use Cases and Extensions​

Yahtzee or Similar Dice Games​

Craps or Casino Games​

Board Games with Dice​

RPG Stat Rolling​

Troubleshooting​

Port Conflicts​

Frontend Bundle Outdated​

Database Query Types Out of Sync​

Lobby Not Creating​

NFT Account Not Found​

MetaMask Issues​

Game Not Starting​

Core Concept: Blackjack Dice with NFT Accounts

Quick Start

Using Test Accounts

Docker Setup

Building the Docker Image

Running the Container

The Components in Action

Game Rules

How to Play

Initial Roll Mechanic

On-Chain Logic

The State Machine (`state-machine.ts`)

Grammar Definition

State Transitions

`nftMint`

`createdLobby`

`joinedLobby`

`submittedMoves`

`closedLobby`

Database Schema

`lobbies`

`lobby_match`

`match_round`

`round_move`

`lobby_player`

`global_user_state`

`nft_ownership`

Type-Safe Queries

API Endpoints

GET `/lobby/:lobbyId`

GET `/open_lobbies`

GET `/lobbies/active`

GET `/user_lobbies`

GET `/user_lobbies_by_nft`

GET `/nfts`

GET `/user_stats`

Frontend Architecture

Key Components

Wallet Middleware

Building the Frontend

Architecture Highlights

Deterministic Random Number Generation

NFT-Based Player Accounts

Polling for Lobby Creation

Generator Function Pattern

Separation of Concerns

Use Cases and Extensions

Yahtzee or Similar Dice Games

Craps or Casino Games

Board Games with Dice

RPG Stat Rolling

Troubleshooting

Port Conflicts

Frontend Bundle Outdated

Database Query Types Out of Sync

Lobby Not Creating

NFT Account Not Found

MetaMask Issues

Game Not Starting
